Build Diary 13/14-March-06

Previous page - HomePage - BuildDiaryIndex - Next page.

Fitting lower cowl. There may be a problem with the mixture lever catching on the cowl. Checked space around the fuel injection servo for the airbox

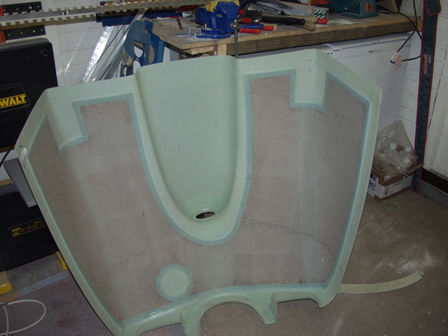

The lower cowl.

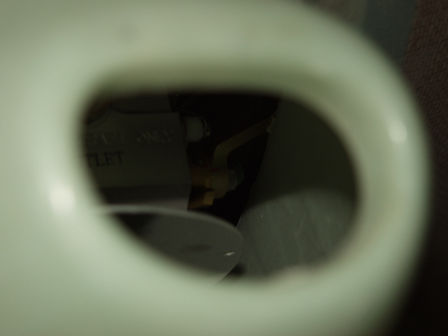

Not a good picture, you can just make out the cranked mixture control very close to the lower cowl.

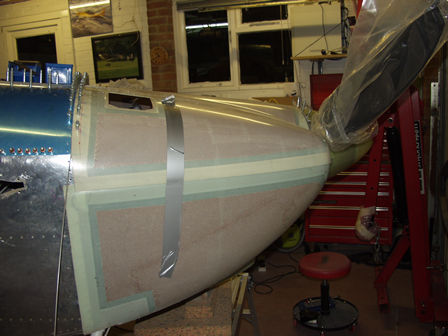

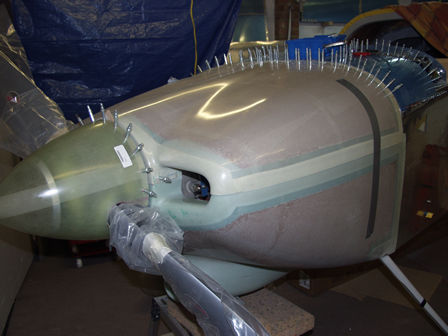

Trial fitting of the lower cowl.

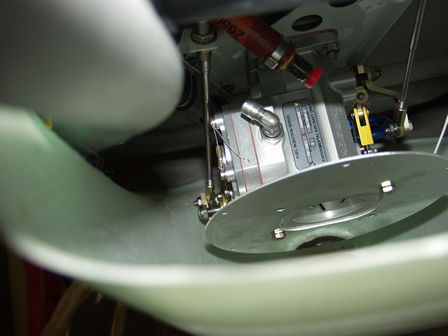

Checking alignment around the fuel servo. Checking space for the airbox.

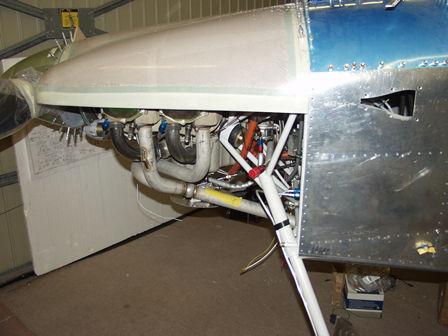

The airbox will go in this area.

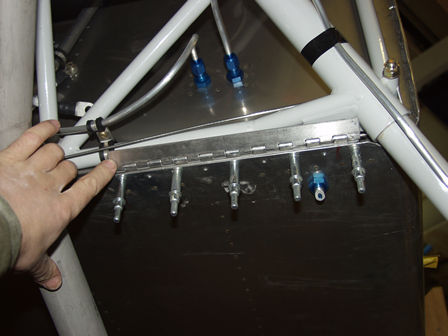

Fitting the lower cowl attachment.

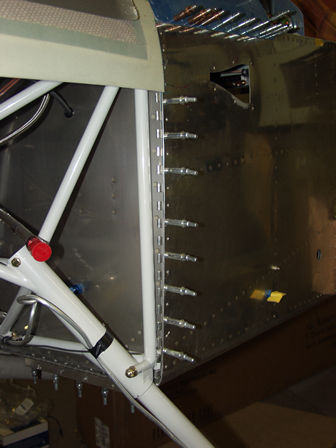

Lower cowl side attachment.
