Build Diary 15-September-05


This evening I worked on the finish strip under the HS.

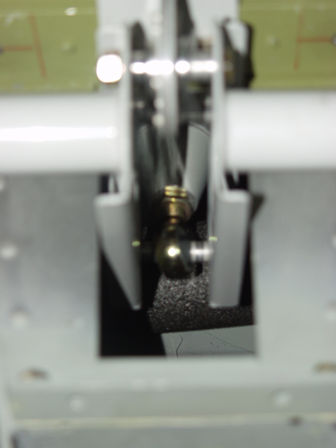

Not a very good picture. It's to show the spacers I made for the control rod on the lower part of the elevator horn

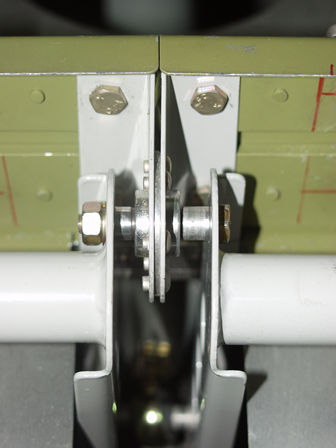

The spacers at the top of the horn. The nut is not correct - it's just here temporary.

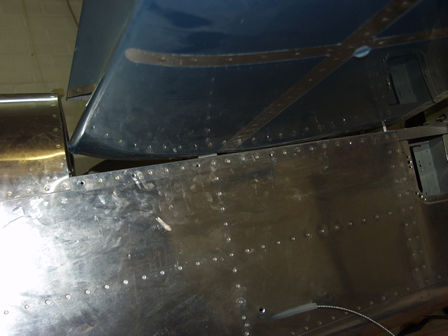

This is where the finish strip goes. On the QB kit the rivets have been fitted and have to be removed.

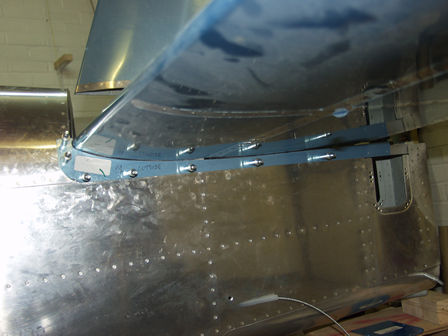

The strip fitted. The cleco's show where the rivets go.

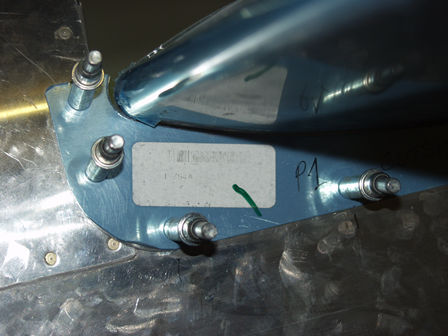

After I finished the left side I reversed it and tried it on the right side. It fitted just as well so I drew the outline on the other part. Which was obviously quicker.
