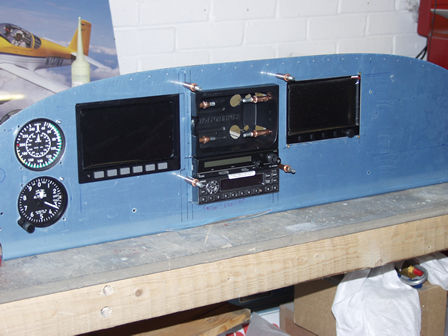

Pushed on with building the instrument panel. Fitted the Dynon D100, GPS mount, ICOM Radio, Garmin Transponder and AF-2500 Engine Monitor.

I decided to cut the instrument panel out now. Just in case I make a mistake - I can re-order the panel with the firewall kit.

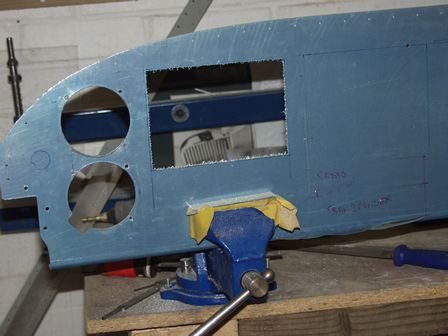

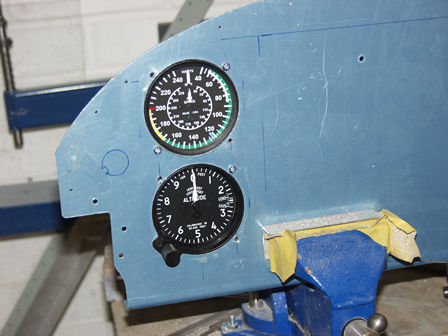

I have started cutting the instrument panel - Altimeter and Airspeed Indicator.

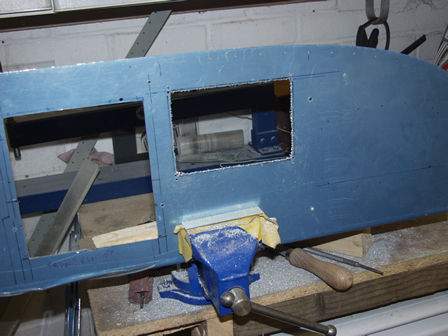

Next the hole for the Dynon D100 - big hole!

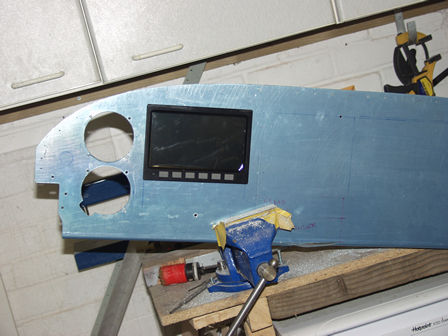

Dynon D100 in the hole!
The stack - Garmin 296 mount (GPS), ICOM A200 (Radio) & Garmin Transponder. This took two evenings work to get the spacing correct and make the mounts.

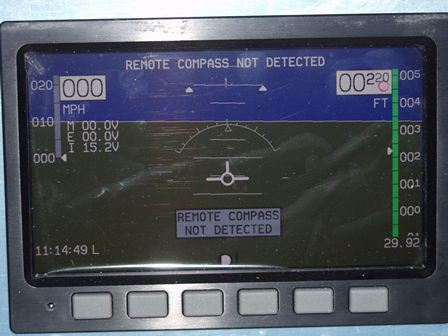

I can't help but switch the Dynon on and see what it looks like!

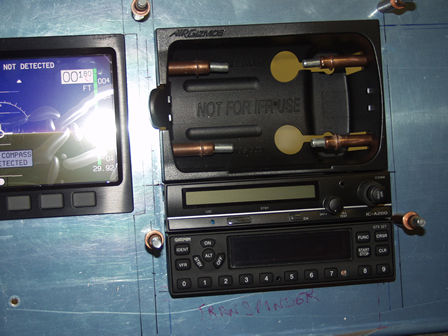

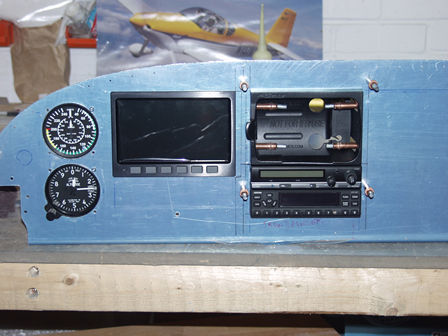

Close up of the stack. I was going to put the radio below the transponder, but every aircraft I have seen has the transponder at the bottom. So decided to fit the transponder at the bottom.

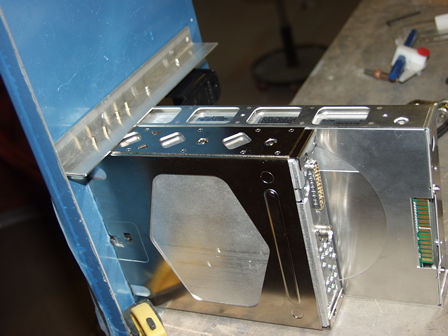

Behind the panel. Radio and transponder.
Advanced supplied a cutout template for the AF-2500.

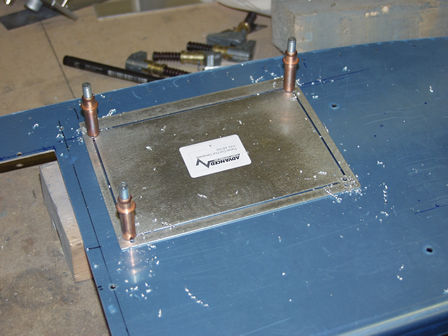

Drilled slightly undersize, then file to size.
It took two evenings to cut the AF-2500 out. Even with the template it was fiddly.


The protective cover is still fitted to the Dynon D100.
