Build Diary 12-February-05

Previous page - HomePage - BuildDiaryIndex - Next page.

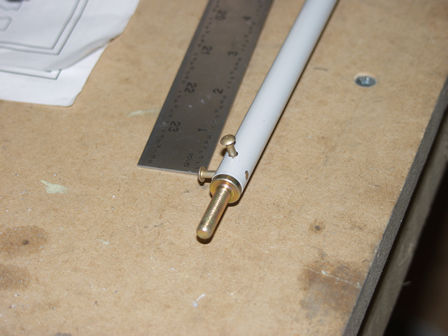

Finished fitting the rivets to aileron gap fairing (W-724) that had caused so many problems yesturday. Made spacers for aileron hindge. Made aileron push rod (too short, will have to re-order). Primed W-716 & W-818 pushrods. Also visted Machine Mart for some more tools - which were nearly all out of stock

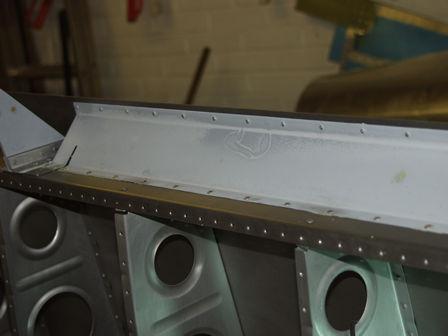

Finished riveting the aileron gap fairing W-724.

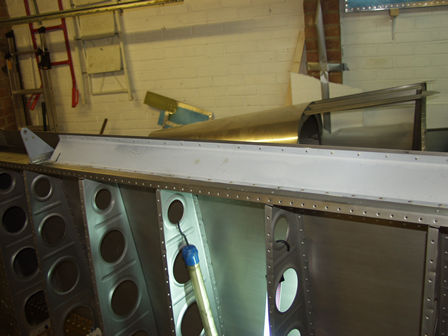

Finished riveting the aileron gap fairing W-724.

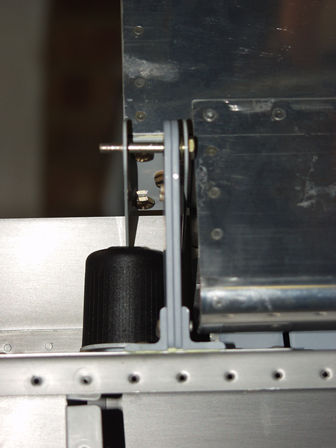

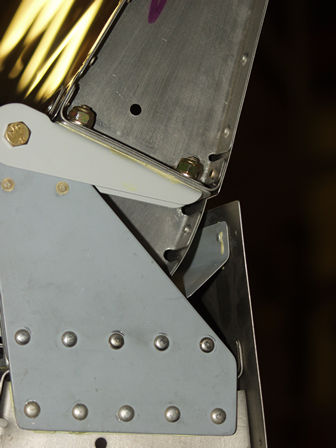

Made spacers and fitted aileron to wing. - The spacers are not fitted yet in this picture........
