Build Diary 04-August-05

Previous page - HomePage - BuildDiaryIndex - Next page.

Continuing steadly with the riveting on the rear skin - Jo has been out to help tonight as I can't do it on my own.

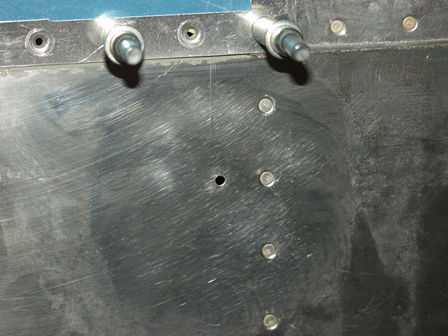

The static point. It's in a different position on RV7 to the RV6 instructions.

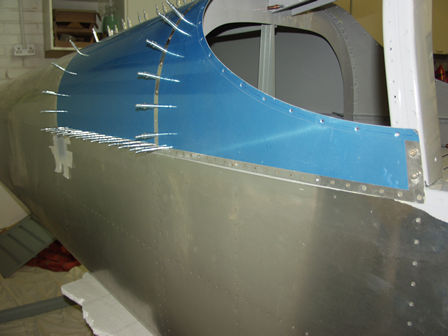

Jo and I did this row of rivets tonight.

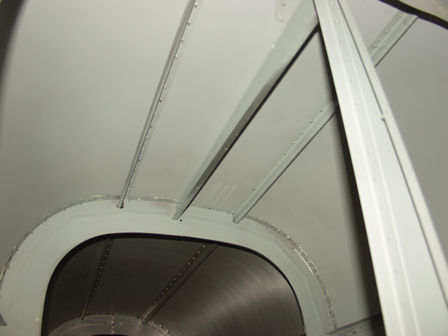

The row we did tonight from the inside.

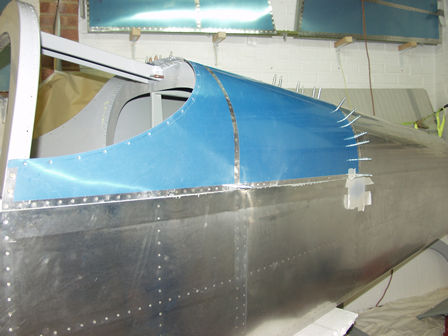

We started on this side this evening.

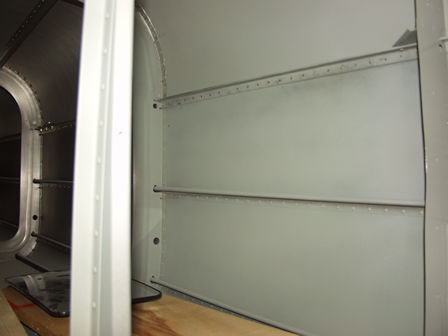

While I was taking pictures - here is the angle that you can't fit until the front three rivets on the skin have been fitted.

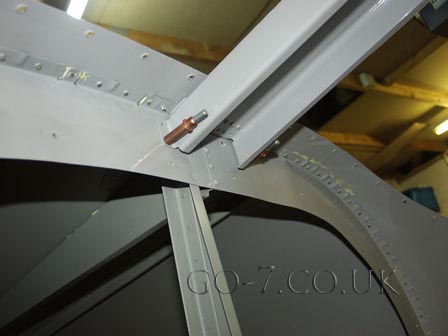

This shows the mode to rear rollbar brace. The 8 - AD4
