Fitting a Superior IO-360 - Manifold Pressure

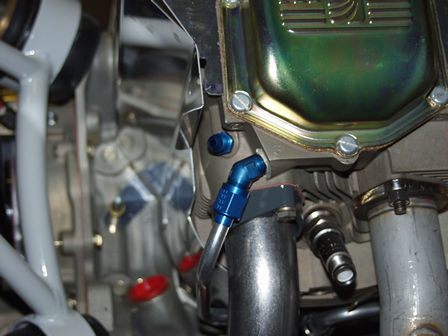

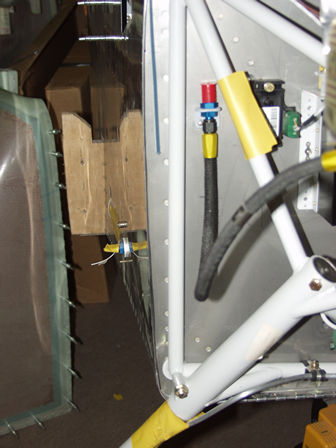

The manifold pressure point is top left of No.3 cyl. Vans FWF kit supplied fitting and pipe with bulkhead fitting. This depends upon what you are using to measure the manifold pressure. I am fitting the Advanced AF-2500 so I sited the other end of the pipe on the firewall with the sensor next to it.
