Fitting a Superior IO-360 - CHT & EGT Probes

The exhaust supplier in the FWF kit by Vans fits the Superior engine. CHT probes from AF-2500 fitted.

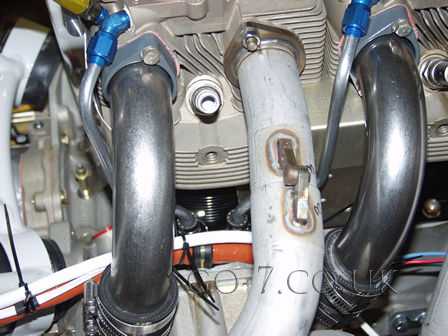

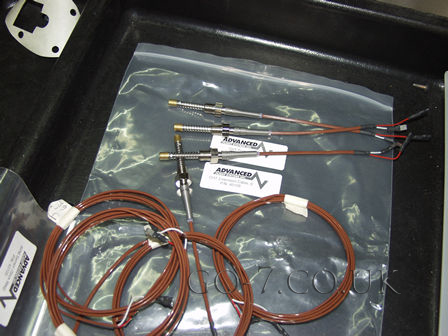

CHT probe position. CHT probes.

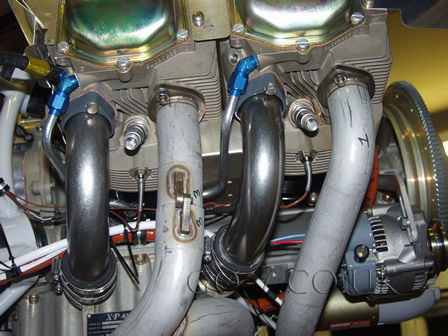

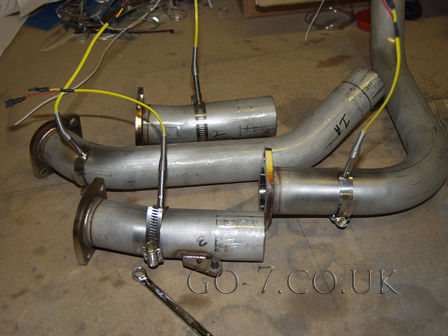

CHT probes fitted. EGT sensors fitted to exhaust. You need to have the probe tip in exactly the same position on all the cylinders.
