Build Diary 23-March-06

Previous page - HomePage - BuildDiaryIndex - Next page.

Started work on baffle behind flywheel. I still have some of the fixings to complete, but they are almost complete.

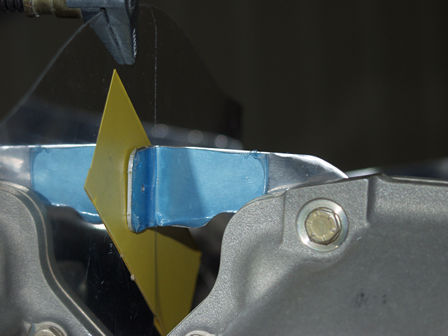

The yellow tape is holding the two parts together. The fabricated brackets are at the bottom.

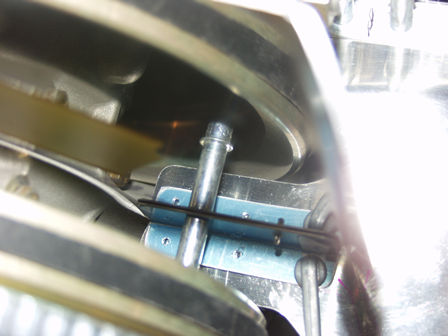

The fitting around the engine block and to the baffle floor.

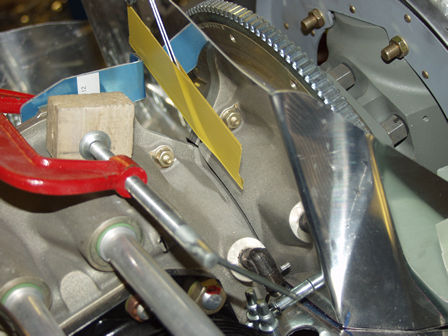

The brackets fit on the flywheel side. Very hard to hold in position while drilling.
The other side.

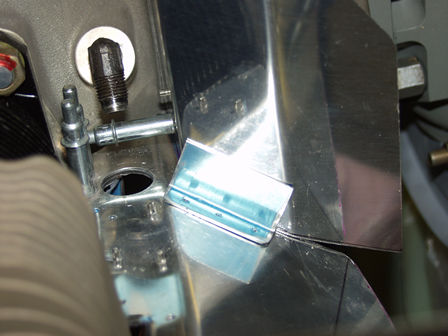

The bracket from the block to baffle behind flywheel.

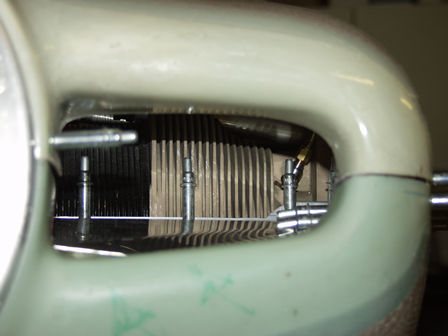

Right hand side showing baffle floor.

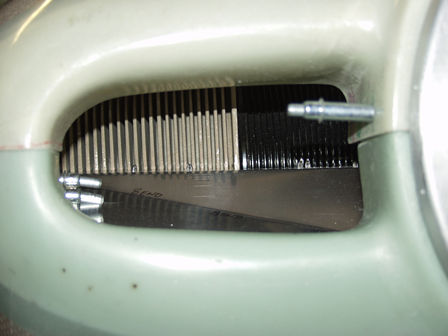

Left side. The floor is up slightly on one side.
