Build Diary 02-April-06

Previous page - HomePage - BuildDiaryIndex - Next page.

Collected Cessna this morning from RAF Halton, took off RW 25 heading 24 all the way back to Popham landing on 26 with 15 knots down the runway. It was a slow trip! In the workshop in the afternoon continued work on the baffles. Made spacer, brackets and joddled joint

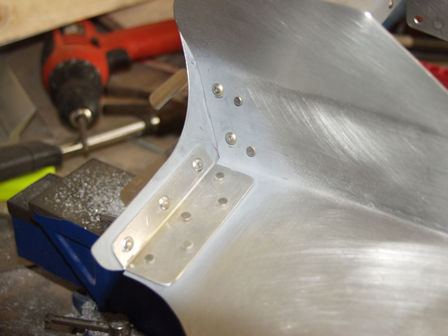

This part holds the two parts - front and rear left baffle section - together.

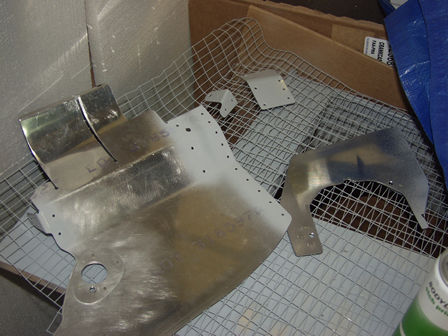

I painted where parts will be jointed together, as I will paint the whole completed part.

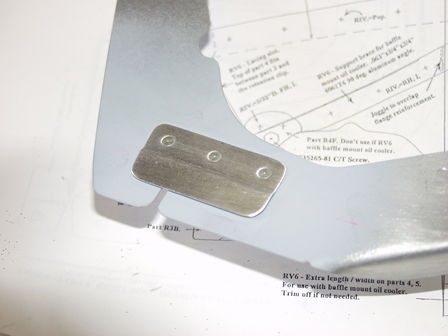

I increased the size of this reinforcement.

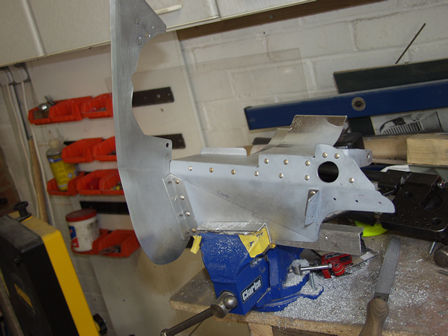

Started riveting front left baffle together.

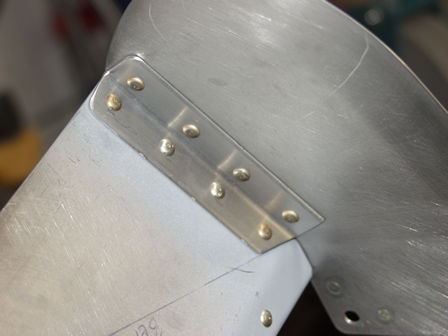

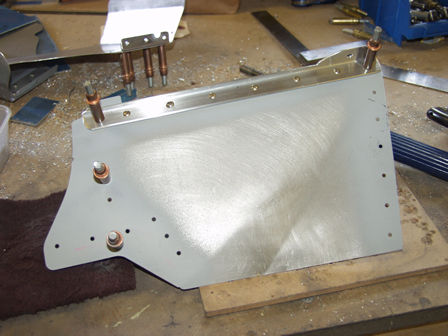

Underside of front left baffle.

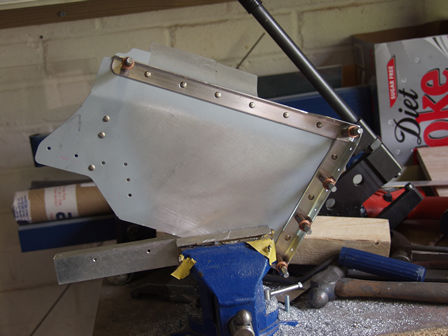

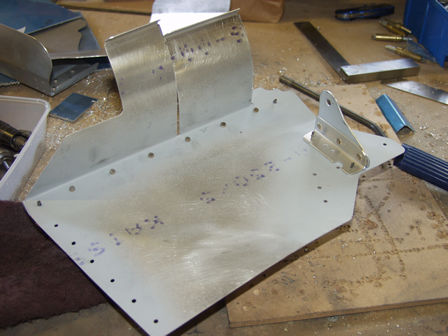

Rear right baffle.

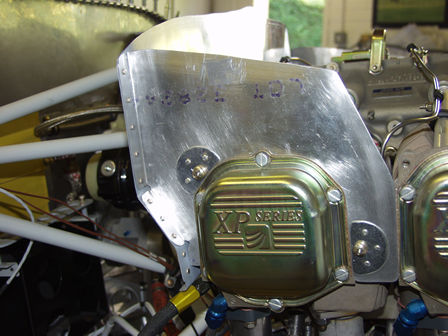

Right rear baffle showing the additional reinforcements I added.

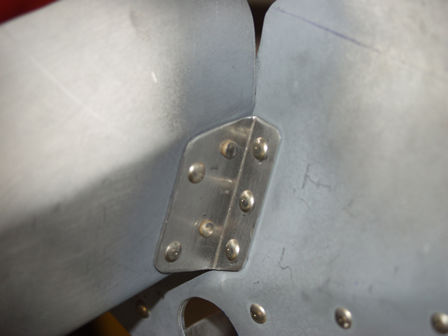

I reveted the reinforcement to the original bracket.
I added this because the hole in the baffle kit was slightly off position, I needed to plate the area. So I thought it worth adding some additional reinforcement. The metal is the area I cut out for the oil cooler.

UPDATE: I later changed this area and added the heater hot air inlet.


Spacers need making up. I used washers as the spacer is slim and the holes are slotted.

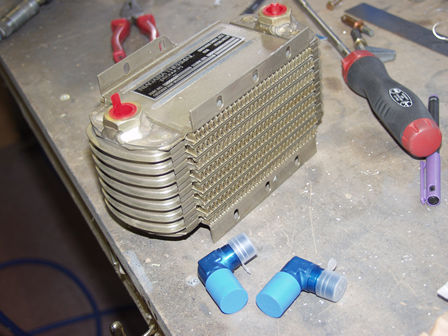

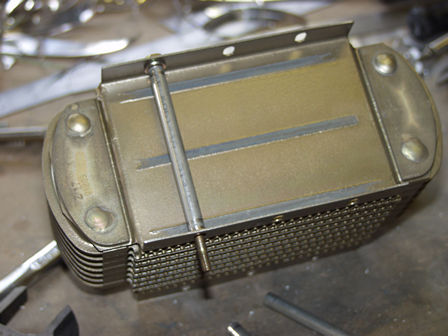

Oil cooler fitted.

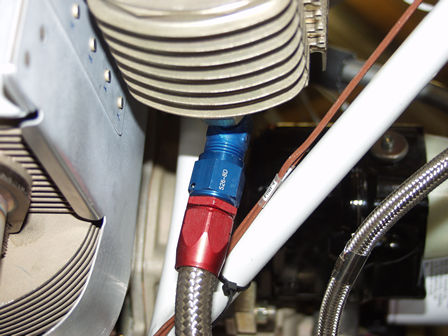

The lower fitting I found fitted better pointing down and towards the cylinder.

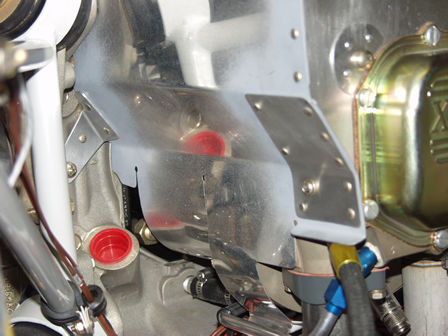

Front right baffle.
